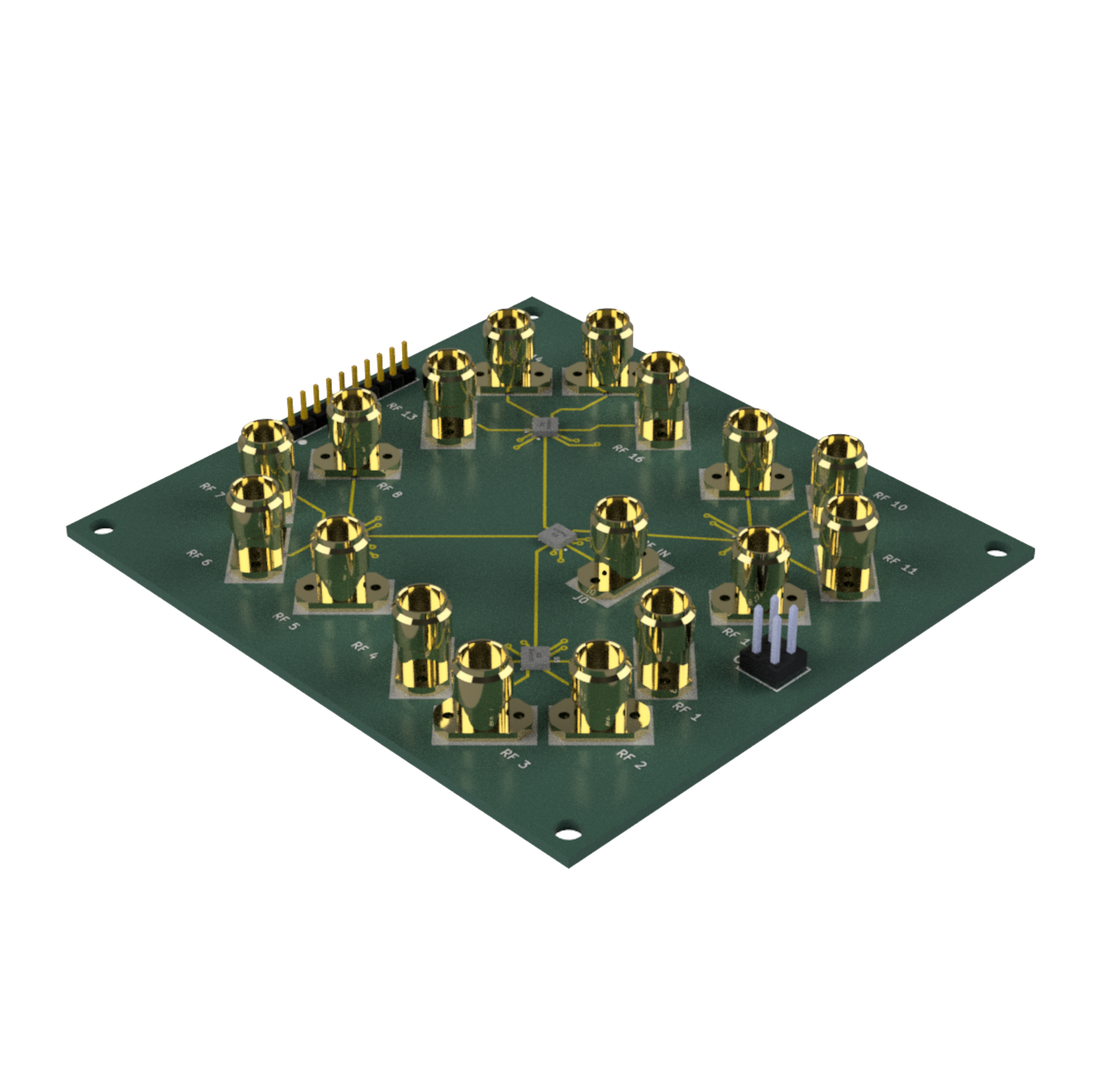

Ultra-wide band solid-state SP16T switch
$9000.00
Description will go here
What’s Included:
SP16T microwave switch board
Control interface header
RF connector set
Board Overview
9 kHz to 52 GHz class • SSD Switching Architecture• Fast, repeatable routing
Route one RF input to any of 16 outputs with a compact, scalable SP16T architecture. The result is a broadband, software-controlled switching platform optimized for test & measurement, mmWave systems, radar, military, and satellite signal routing.
Hero Highlights
SP16T topology implemented using a 2-stage SP4T “tree”
Broadband performance class: PE42546 supports 9 kHz–52 GHz
Fast switching:~120 ns (IC-level)
High power/linearity class: P1dB ~35 dBm, isolation ~0 dB, and low insertion loss
3.3 V CMOS control
Specifications
| Category | Spec | Value |
|---|---|---|
| Topology | Switch configuration | SP16T (1×16) |
| Architecture | Implementation | 2-stage SP4T tree (typ. 5× PE42546) |
| Frequency | Operating range | 9 kHz – 52 GHz (IC baseline; |
| Insertion Loss | IL @ 18 GHz | >~3 dB (System) |
| Isolation | Iso @ 18 GHz | ~-30 dB (System) |
| Return Loss | S11 / S22 | ~<-12 dB (System) |
| Switching speed | IC switching time | ~180 ns typ (IC) |
| Power handling | Input P1dB | ~35 dBm typ (IC) |
| Isolation (IC) | Port-to-port isolation | Up to ~41 dB (IC) |
| Supply | VDD | 3.15–3.45 V (IC family table) |
| Temperature | Operating | –40 °C to +105 °C (IC) |
| RF I/O | Connectors | 2.92 mm female (board) |
| RF ports | Count | 17 total (RFC + 16 throws) |
Software & Control
Control Method: Logic pins for switching states
Automation Support: GPIO / USB support (via host micro/controller).
Switch Commands: Set active path; Disable all paths; Read state
This board can be easily integrated with Python or embedded control software.
Typical Applications
RF test and measurement systems
Millimeter-wave communications (5G FR2)
Satellite transponder subsystems
Radar and sensor systems
Automated test equipment (ATE) routing
Military systems
Mechanical & Integration
Board Size: 52 mm × 51 mm
Connectors: 50 Ω 2.92 mm female
Mounting Holes: Standard rack/fixture pattern
Housing: Optional metal/die-cast enclosure
Compliance & Reliability
RoHS: Yes
MTBF: XXX hours
ESD Rating: HBM 2000 V (IC class guideline)
Return policy
30-day money back guarentee
Ordering Information:
Part Number Scheme
Standard lead time: 3–4 weeks unless in stock
Warranty: 1 year
Returns: 30-day money-back guarantee
Shipping region info
Downloads
Made in the USA
At Qubit Microwave, we strive for the highest quality products. All designs are fabricated in the USA, enabling streamlined production and competitive pricing without foreign tariffs.
