Ultra-wide band solid-state SP4T Switch board
from $1,500.00
A high-performance solid-state SP4T microwave switch board optimized for broadband RF applications from 9 kHz up to 52 GHz. This board delivers low insertion loss, excellent isolation, fast switching, and high linearity — ideal for test & measurement, 5G mmWave, satellite, military, and radar systems.
What’s Included
SP4T microwave switch board with or without casing
Control interface header
RF connector set
A high-performance solid-state SP4T microwave switch board optimized for broadband RF applications from 9 kHz up to 52 GHz. This board delivers low insertion loss, excellent isolation, fast switching, and high linearity — ideal for test & measurement, 5G mmWave, satellite, military, and radar systems.
Board Overview
This SP4T board integrates the a solid state switch die with an optimized RF layout to support ultra wide band, multi-GHz operation. It includes 2.92mm female connectors and control interfaces to make integration into larger systems straightforward:
RF Interfaces: 50 Ω 2.92 mm female connectors (board level)
Control: 3.15 V – 3.45 V CMOS logic compatible
Power Supply: Single 3.3 V supply for switch IC rail
The board implements proper RF grounding, impedance control, and decoupling to maximize isolation and minimize reflections across the operating band.
Switch IC Key Features
| Specification | Value |
|---|---|
| Switch Type | Solid-state SP4T reflective topology |
| Switch IC | pSemi PE42546 UltraCMOS® SP4T RF switch |
| Frequency Range | 9 kHz – 52 GHz |

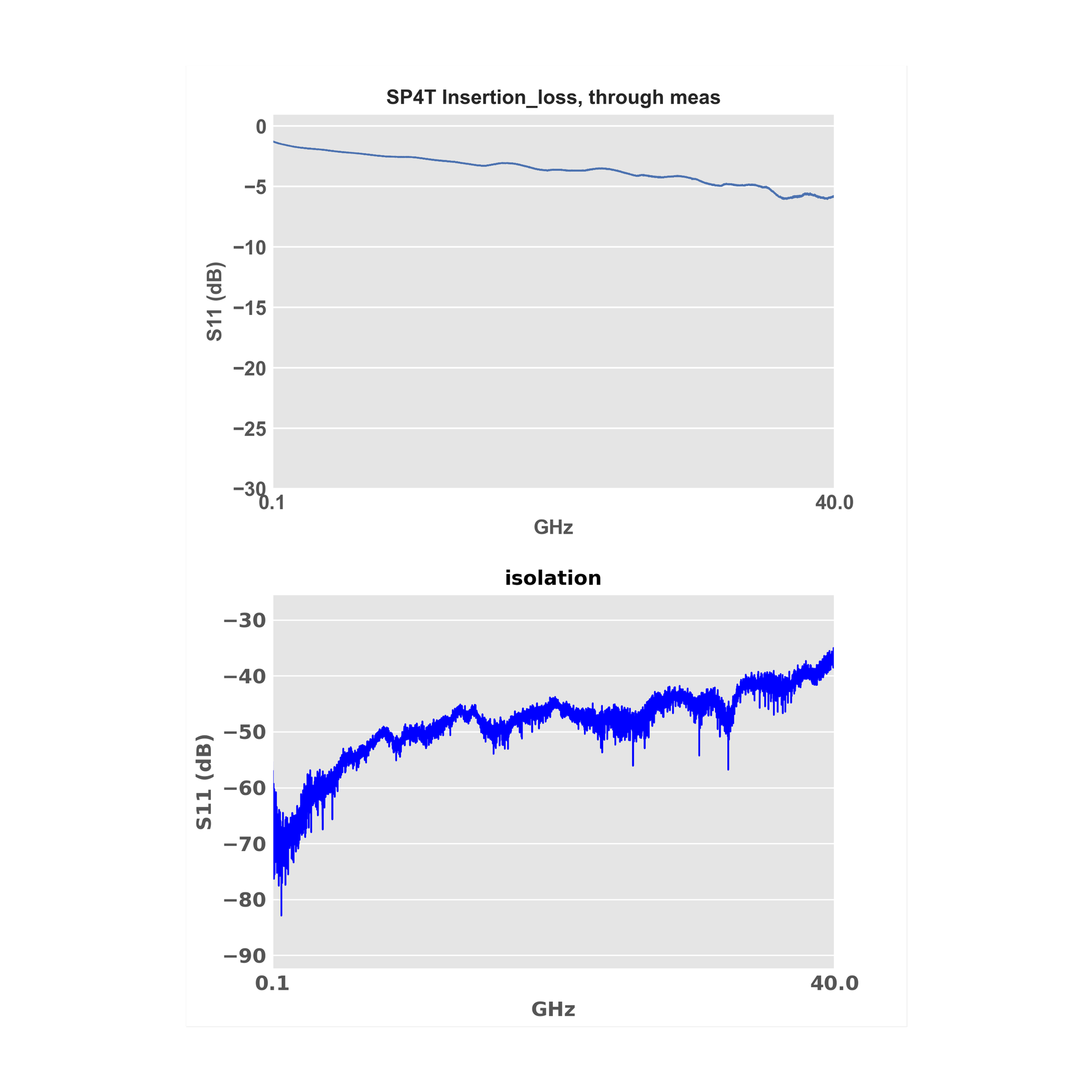

| Insertion Loss | ~5 dB @ 30 GHz |
| Isolation | up to 35 dB typical |
| Return Loss | ~-30 dB typical @ 30 GHz |
| Switching Time | ~60 ns typical |
| Linearity (IP3) | IIP3 ~52–53 dBm typical |
| Operating Temperature | ~35 dBm typical |
| Control Interface | −40 °C to +105 °C |
| RF Connectors | 52 mm x 51 mm* |
| Control Interface | CMOS compatible logic |
Software & Control
Control Method: Logic pins for switching states
Automation Support: GPIO / USB support (via host micro/controller).
Switch Commands: Set active path; Disable all paths; Read state
This board can be easily integrated with Python or embedded control software.
Typical Applications
RF test and measurement systems
Millimeter-wave communications (5G FR2)
Satellite transponder subsystems
Radar and sensor systems
Automated test equipment (ATE) routing
Military systems
Mechanical & Integration
Board Size: 52 mm × 51 mm
Connectors: 50 Ω 2.92 mm female
Mounting Holes: Standard rack/fixture pattern
Housing: Optional metal/die-cast enclosure
Compliance & Reliability
RoHS: Yes
MTBF: XXX hours
ESD Rating: HBM 2000 V (IC class guideline)
Return policy
30-day money back guarentee
Ordering Information:
Part Number Scheme
Standard lead time: 3–4 weeks unless in stock
Warranty: 1 year
Returns: 30-day money-back guarantee
Shipping region info
Downloads
Made in the USA
At Qubit Microwave, we strive for the highest quality products. All designs are fabricated in the USA, enabling streamlined production and competitive pricing without foreign tariffs.
